UP-A2004T
High Flow Booster Pump
- The pressure-bearing components are made of high-strength plastic and metal.
- Low noise, low vibration, high power DC motor configuration.
- Water-contact components meet food-grade requirements.
- Integrating voltage stabilization and self-priming functions.
- Applied to RO systems of 400 GPD.
- CE certified.
- Life time test: pass 2,000 hrs at 70 PSI.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface method | 3/8" NPT |
| Rated Power | 58 W |
| Inlet Pressure | 30 PSI (2 bar) |
| Working Pressure | 70 PSI (4.8 bar) |
| Working Flow | ≧ 2300 mL / min |
| Operating Current | ≦ 2.4 A |
| By Pass Pressure | ≧ 140 PSI (9.7 bar) |
| Dimensions | 186 x 99 x 91 (mm) |
| Weight | 1700 (g) |

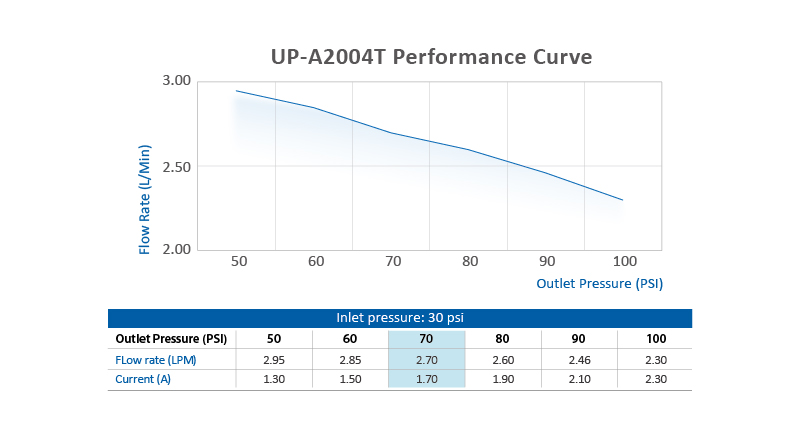

Flow Chart
- Booster pump UP-A2004T is the updated model replacing booster pump UP-9100 used in 400 GPD water purifier applications, such as CE6T-DE.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface method | 3/8" NPT |
| Rated Power | 58 W |
| Inlet Pressure | 30 PSI (2 bar) |
| Working Pressure | 70 PSI (4.8 bar) |
| Working Flow | ≧ 2300 mL / min |
| Operating Current | ≦ 2.4 A |
| By Pass Pressure | ≧ 140 PSI (9.7 bar) |
| Dimensions | 186 x 99 x 91 (mm) |
| Weight | 1700 (g) |
