UP-A2002T

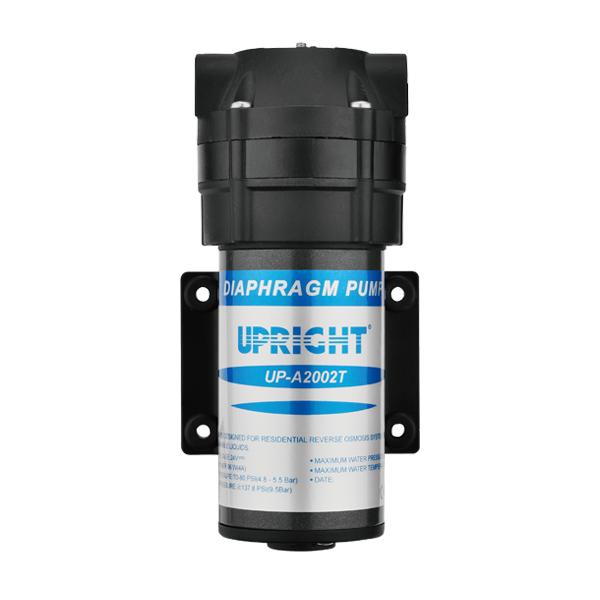

Puricom UP-A2002T Ultra High Flow Booster Pump

Ultra-High Flow Booster Pump

  • The pressure-bearing components are made of high-strength plastic and metal.
  • Low noise, low vibration, high power DC motor configuration.
  • Water-contact components meet food-grade requirements.
  • Ultra-low pressure operation, integrating voltage stabilization and self-priming functions.
  • Applied to RO systems of 800 GPD.
  • CE certified.
  • Life time test: pass 2,000 hrs at 70 PSI.

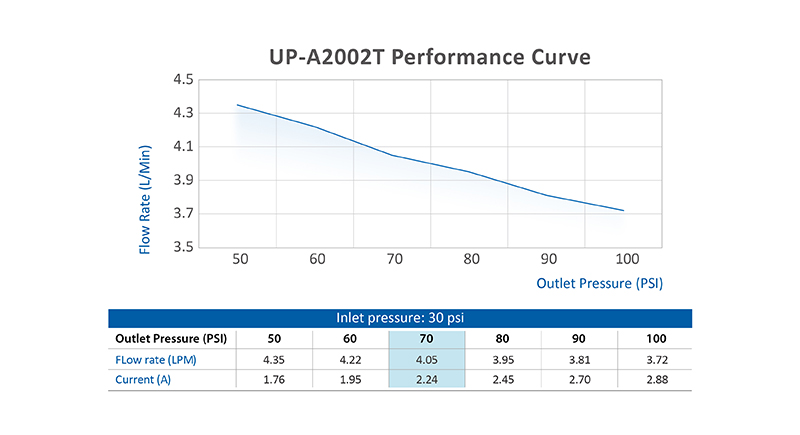

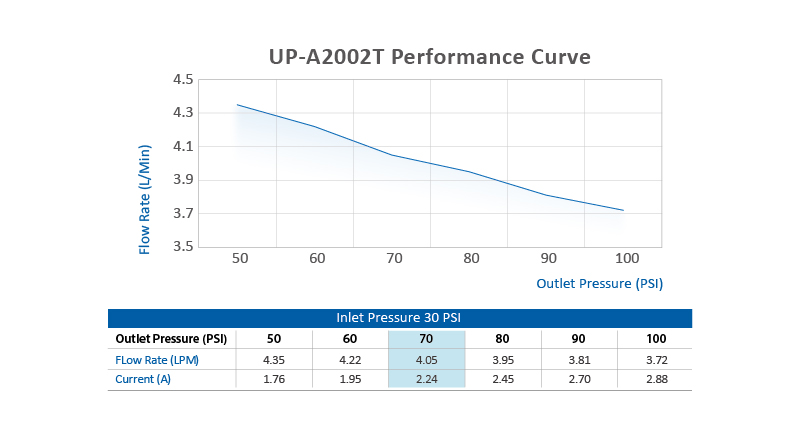

Specification

Voltage 24 VDC
Interface method 3/8" NPT
Rated Power 96 W
Inlet Pressure 30 PSI (2 bar)
Working Pressure 70 PSI (4.8 bar)
Working Flow ≧ 4000 mL / min
Operating Current ≦ 4 A
By Pass Pressure ≧ 138 PSI (9.5 bar)
Dimensions 196 x 99  x 91 (mm)
Weight 2000 (g)
