UP-A1001P
High Flow Booster Pump
- Quick connect design. Easy for installation.
- Most compact pump with lighter weight.
- The pressure-bearing components are made of high-strength plastic and metal.
- Low noise, low vibration, high power DC motor configuration.
- Water-contact components meet food-grade requirements.
- Stable pressure output with self-priming capability.
- Applied to RO systems of 50-75GPD.
- CE certified.
- Life time test: pass 2,000 hrs at 70 psi.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface Method | 1/4” top male quick connector |
| Rated Power | 14.4 W |
| Inlet Pressure | 20 PSI (1.4 bar) |
| Working Pressure | 70 PSI (4.8 bar) |
| Working Flow | ≧ 560 mL/min |
| Operating Current | ≦ 1.2 A |
| Bypass Pressure | ≧ 137.8 PSI (9.5 bar) |
| Dimensions | 148 x 59 x 63 (mm) |
| Weight | 632 (g) |

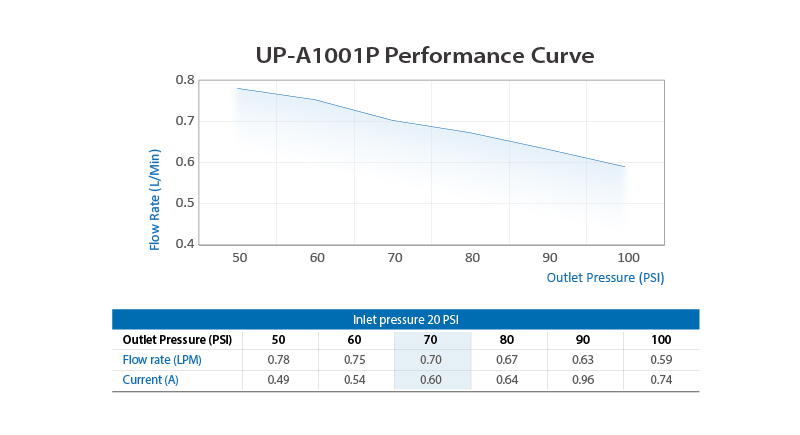

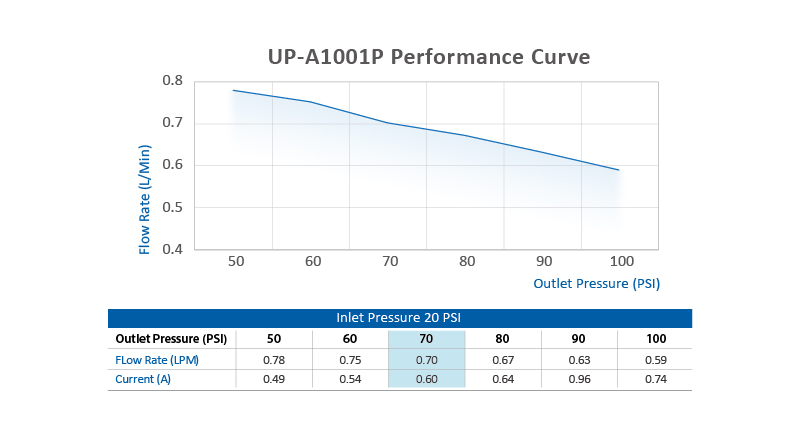

Flow Chart
- Booster pump UP-A1001P is the updated model of Booster pump UP-6000 / 6000N for water purifier applications.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface Method | 1/4” top male quick connector |
| Rated Power | 14.4 W |
| Inlet Pressure | 20 PSI (1.4 bar) |
| Working Pressure | 70 PSI (4.8 bar) |
| Working Flow | ≧ 560 mL/min |
| Operating Current | ≦ 1.2 A |
| Bypass Pressure | ≧ 137.8 PSI (9.5 bar) |
| Dimensions | 148 x 59 x 63 (mm) |
| Weight | 632 (g) |
