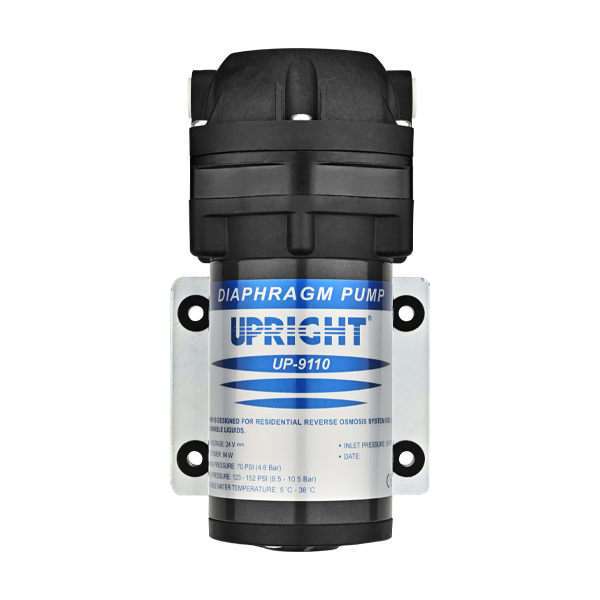

UP-9110
High Flow Booster Pump
- The pressure-bearing components are made of high-strength plastic and metal.
- Low noise, low vibration, high power DC motor configuration.
- Water-contact components meet food-grade requirements.
- Applied to RO systems of 400-600 GPD.
- CE certified.
- Life time test: pass 2,000 hrs at 70 PSI.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface method | 3/8” side female quick connector |
| Rated Power | 84 W |
| Inlet Pressure | 30 PSI (2 bar) |
| Working Pressure | 70 PSI (4.8 bar) |
| Working Flow | ≥ 2950 mL / min |
| Operating Current | ≤ 2.5 A |
| By Pass Pressure | 123~152 PSI (8.5 ~ 10.5 bar) |
| Dimensions | 187 x 103 x 88 (mm) |
| Weight | 1800 (g) |

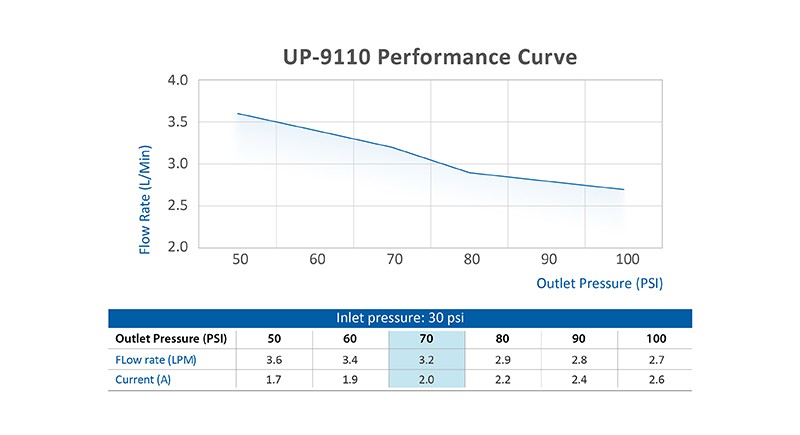

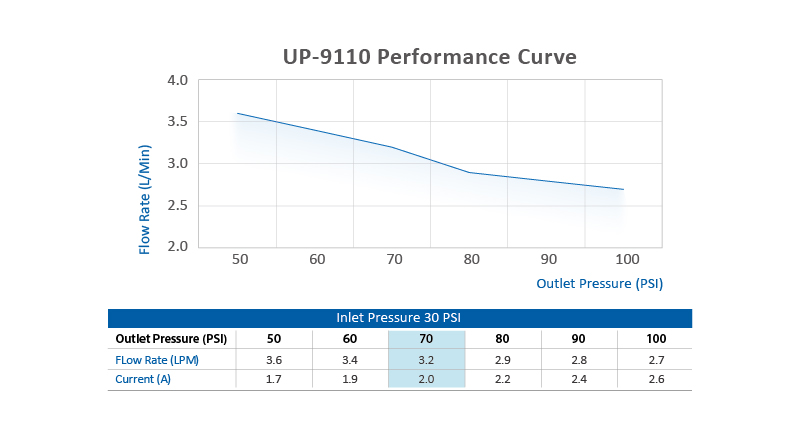

Flow Chart
- Booster pump UP-9110 is the updated model replacing booster pump UP-9100 used in 600 GPD water purifier applications, such as CDA-DH2.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface method | 3/8” side female quick connector |
| Rated Power | 84 W |
| Inlet Pressure | 30 PSI (2 bar) |
| Working Pressure | 70 PSI (4.8 bar) |
| Working Flow | ≥ 2950 mL / min |
| Operating Current | ≤ 2.5 A |
| By Pass Pressure | 123~152 PSI (8.5 ~ 10.5 bar) |
| Dimensions | 187 x 103 x 88 (mm) |
| Weight | 1800 (g) |
