UP-7011
High Flow Booster Pump
- High flow rate, stable pressure, and long lifespan.
- Quick connect design. Easy for installation.
- The pressure-bearing components are made of high-strength plastic and metal.
- Low noise, low vibration, high power DC motor configuration.
- Water-contact components meet NSF and FDA food-grade requirements.
- Life time test: pass 2,000 hrs at 70 psi.
- Applied to RO systems of 75-100GPD.
- CE certified.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface method | 1/4” top female quick connector |
| Rated Power | 31.2 W (1.3 A) |
| Inlet Pressure | 30 PSI (2 bar) |
| Working Pressure | 70 PSI (4.1 - 5.5 bar) |
| Working Flow | ≧ 750mL / min |
| Operating Current | ≦ 1 A |
| By Pass Pressure | 116 - 145 PSI (8 - 10 bar) |
| Dimensions | 157 x 70 x 68 (mm) |
| Weight | 960 (g) |

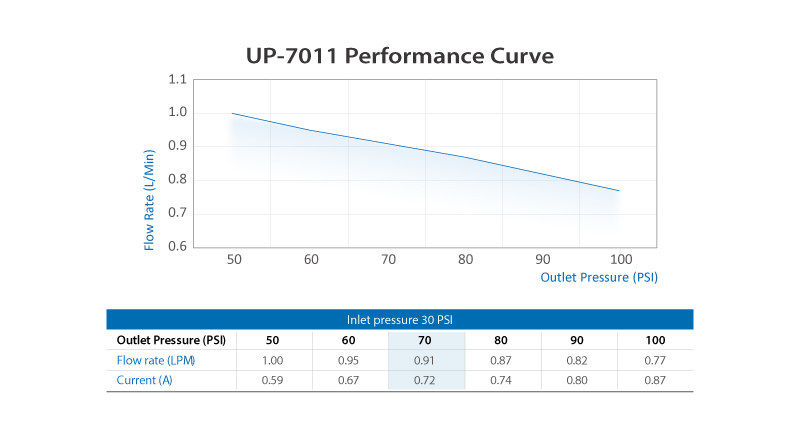

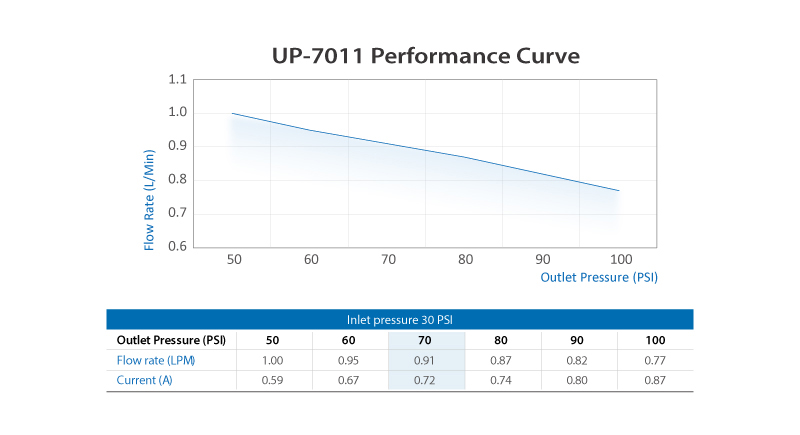

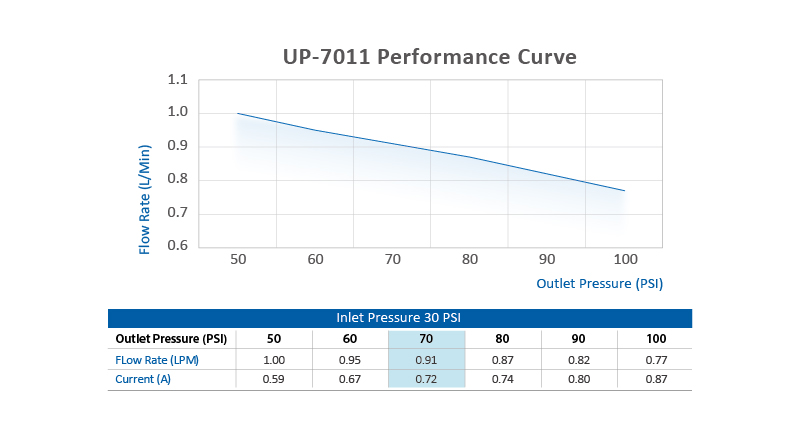

Flow Chart
- Booster pump UP-7011 is the updated model of Booster pump UP-7000 / UP-7000A for water purifier applications.
Specification
| Voltage | 24 VDC |
|---|---|
| Interface method | 1/4” top female quick connector |
| Rated Power | 31.2 W (1.3 A) |
| Inlet Pressure | 30 PSI (2 bar) |
| Working Pressure | 70 PSI (4.1 - 5.5 bar) |
| Working Flow | ≧ 750mL / min |
| Operating Current | ≦ 1 A |
| By Pass Pressure | 116 - 145 PSI (8 - 10 bar) |
| Dimensions | 157 x 70 x 68 (mm) |
| Weight | 960 (g) |
