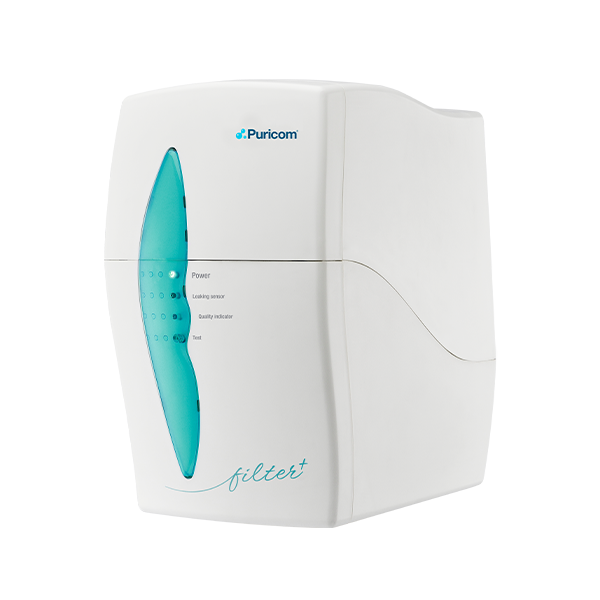

Compact RO System
- Integrated Manifold Technology: Integrates internal water channels into a compact structure with fewer piping connections.
- Quick Filter Replacement: Built-in shut-off and twist-and-pull designs enable safe, quick, tool-free filter changes.
- Compact, Space-Efficient Design: Saves more than half of the under-sink storage space.
- Safety & Food-Grade Materials: Uses food-grade, BPA-free materials throughout the water-contact path.
- Smart 4-in-1 LED Indicator: Filter change notice, water quality detector, leak sensor, auto-flushing.
- 4-Stage Water Filtration: Combines sediment filtration, activated carbon, reverse osmosis, and pH adjustment.

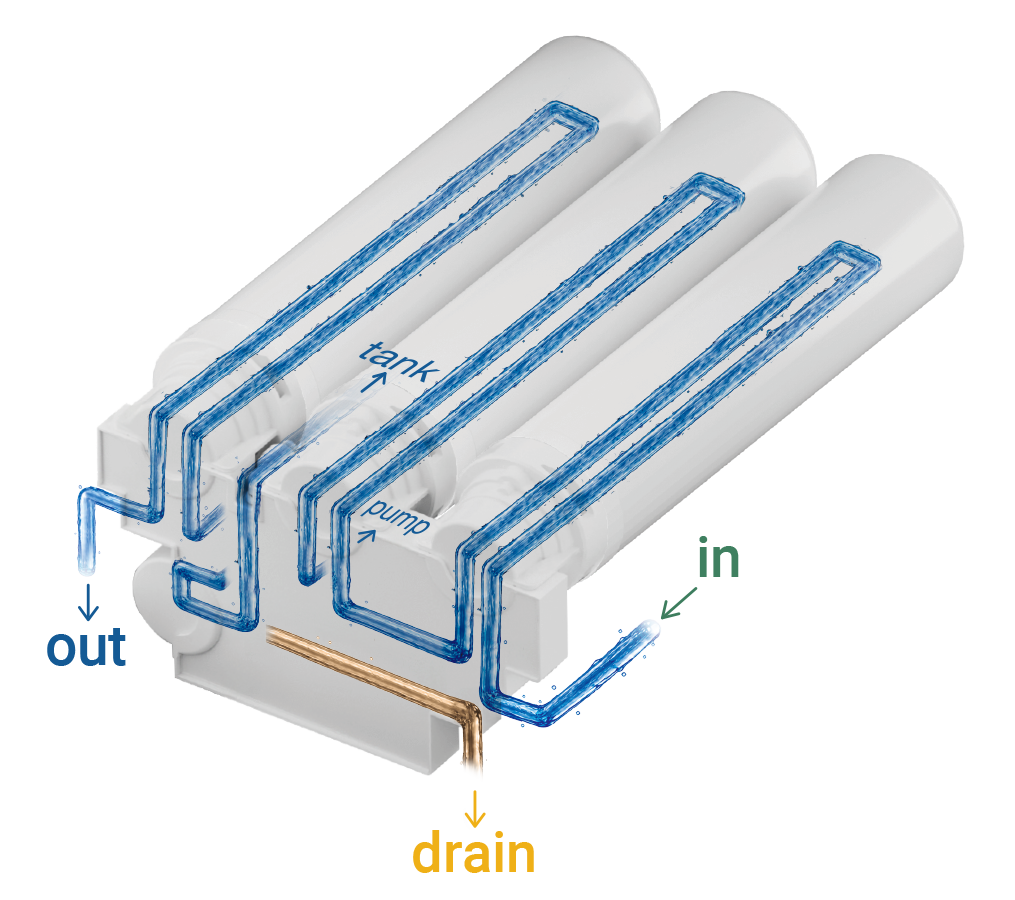

Integrated Manifold
The integrated waterway design combines internal water channels into a compact, streamlined structure, reducing the number of pipes and fittings required. Its integrated construction helps minimize potential leakage points, while the simplified internal layout supports a slimmer product profile and more efficient use of space.

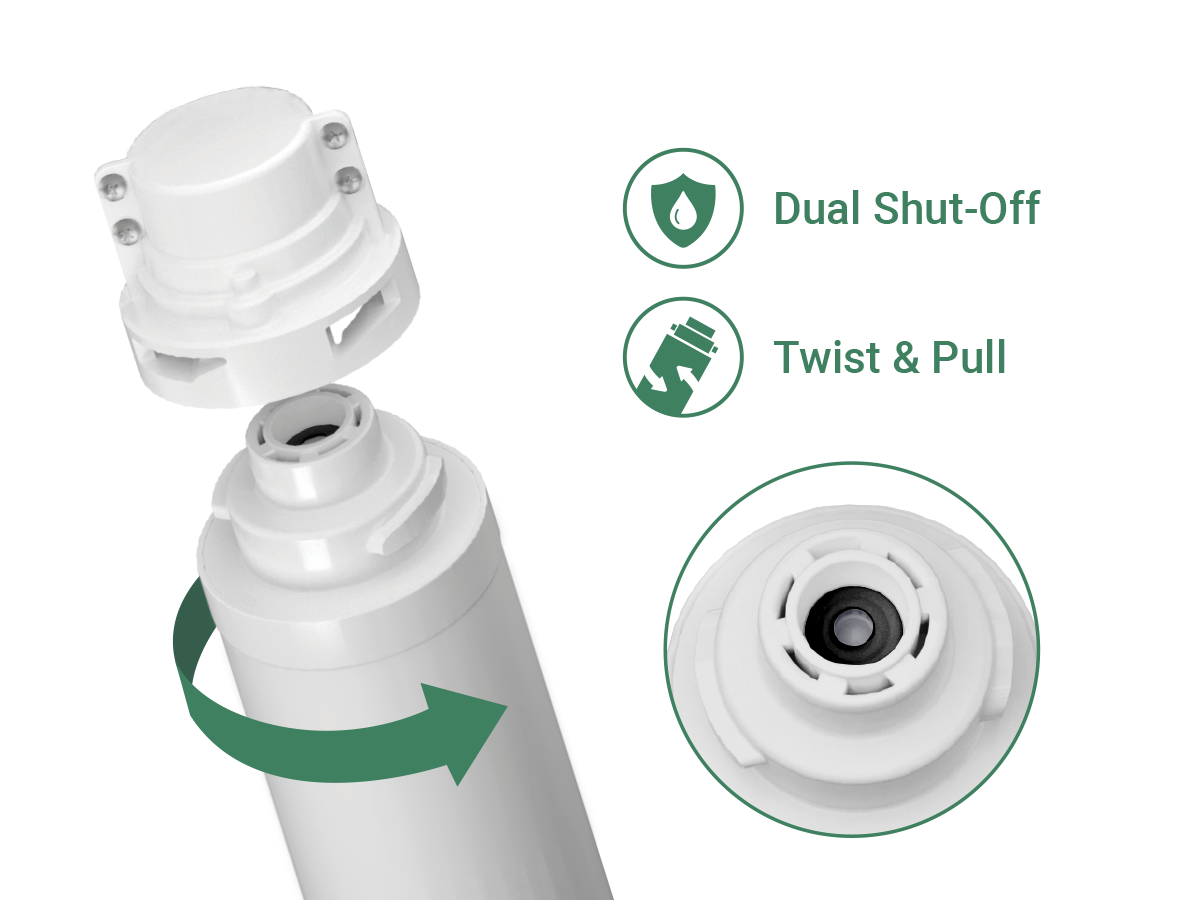

Dual Shut-Off Design
The built-in dual shut-off design features shut-off valves in both the filter cartridge and its base, helping reduce water spillage during filter replacement. The twist-and-pull design enables quick, tool-free filter changes, making maintenance easier and more convenient. The disposable cartridge design also helps minimize the risk of secondary contamination during filter replacement.

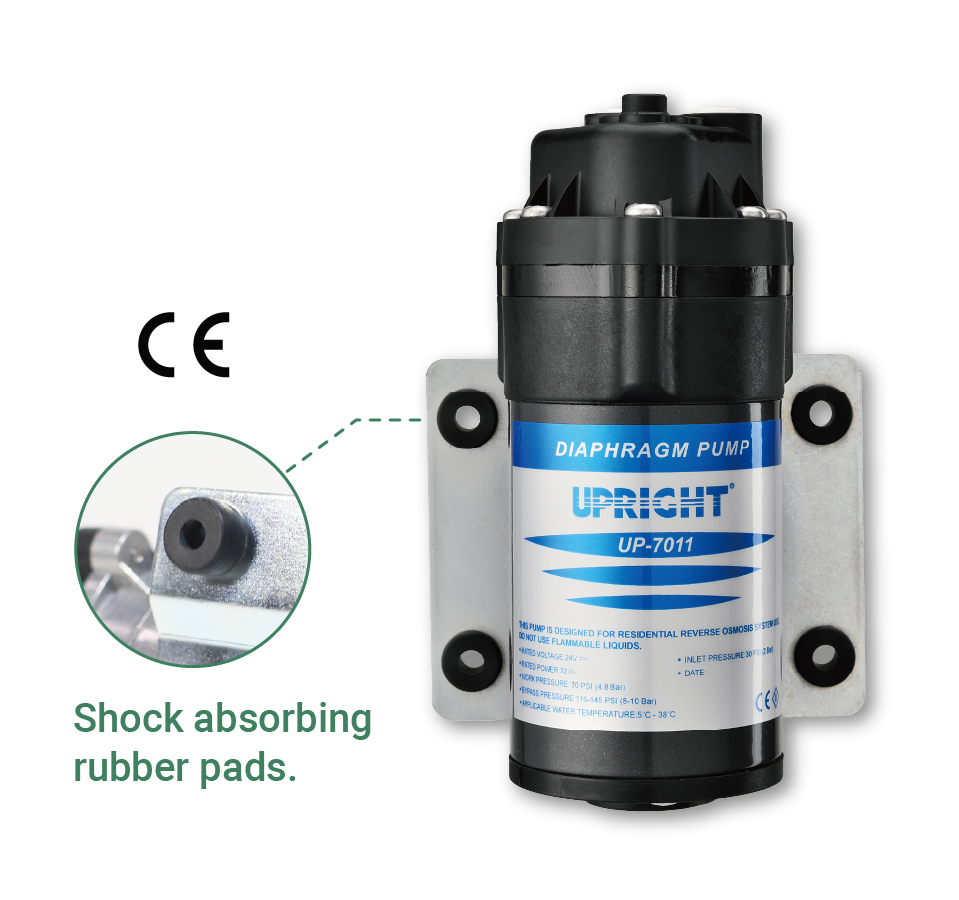

CE-Certified Booster Pump
The CE-certified DC booster pump delivers high flow rates and stable pressure for 50–100 GPD reverse osmosis (RO) systems. Its high-strength plastic and metal pressure-bearing components are designed for durability, while the low-noise, low-vibration DC motor supports quiet operation. Water-contact components meet NSF and FDA food-contact requirements.
Four-Stage Water Filtration System

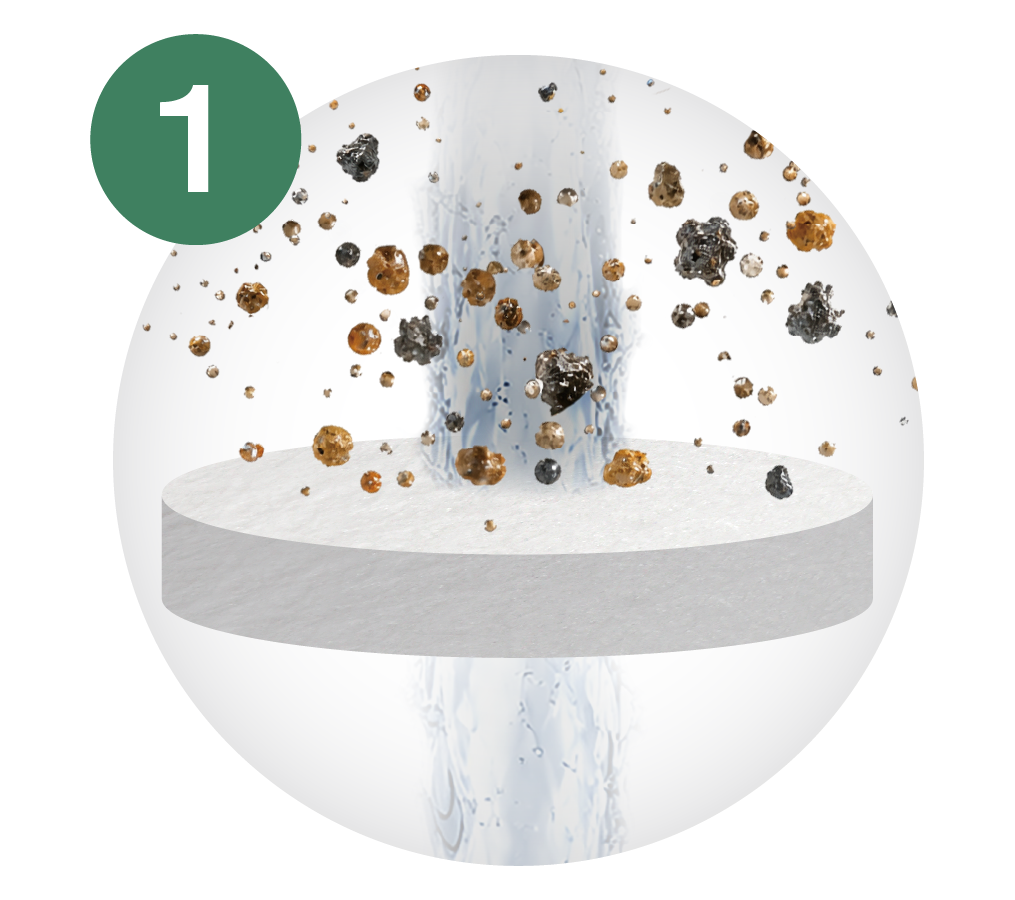

Stage 1
FU-23: PP 5 Micron Filter
Effectively traps dirt, rust, and other particulate impurities.

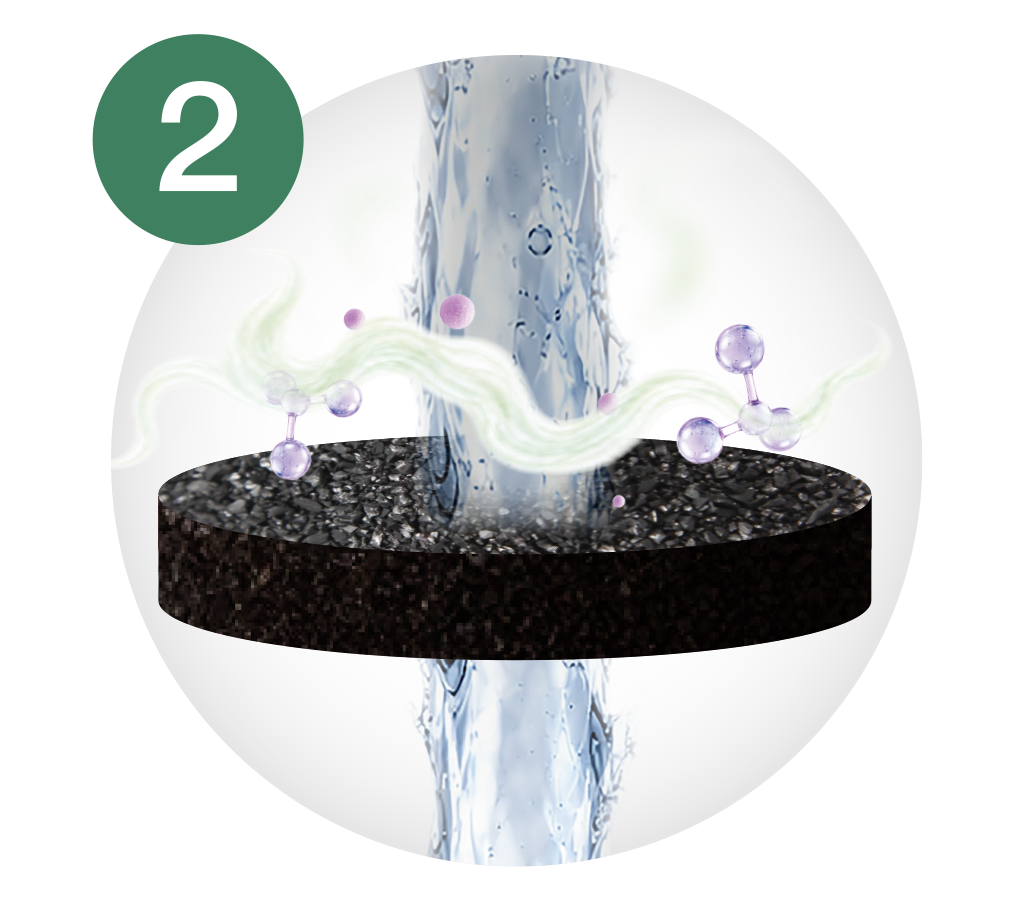

Stage 2
FU-23: GAC Filter
Helps reduce chlorine, odors, and other unwanted substances.

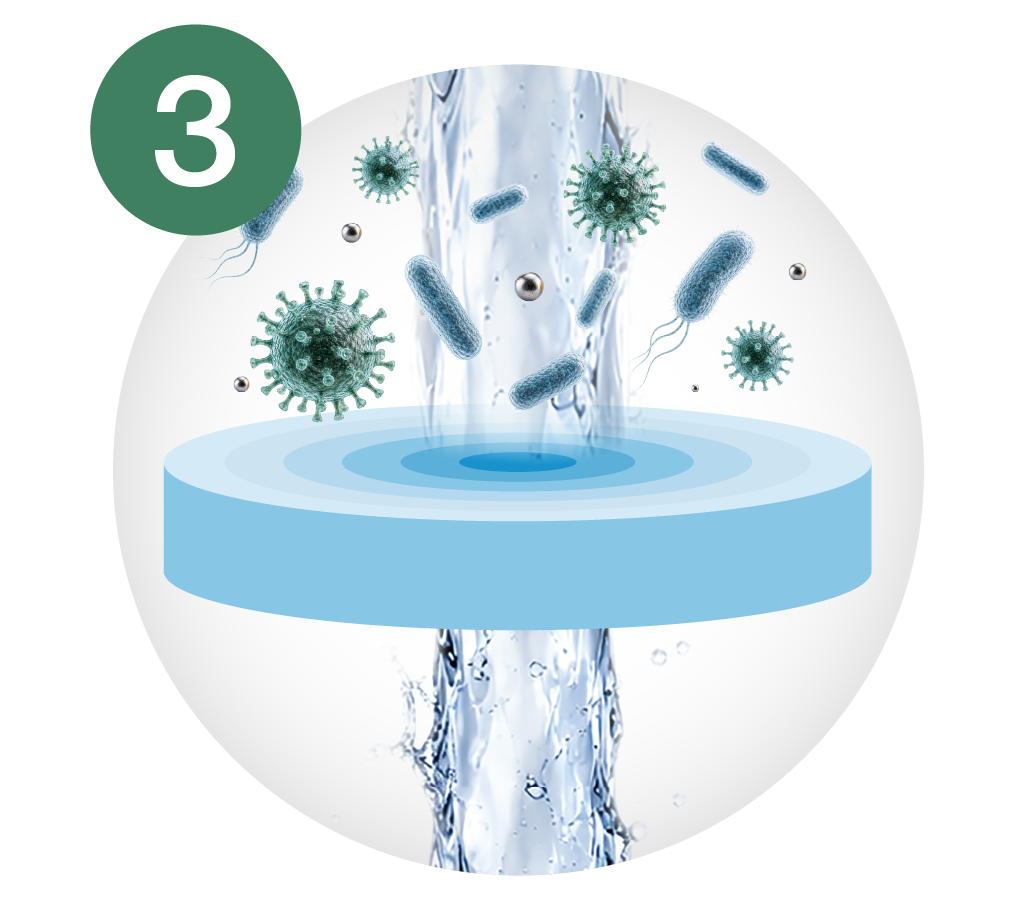

Stage 3
FU-24: RO Membrane
Effectively reduces TDS, viruses, bacteria, heavy metals, pesticides, and other contaminants.

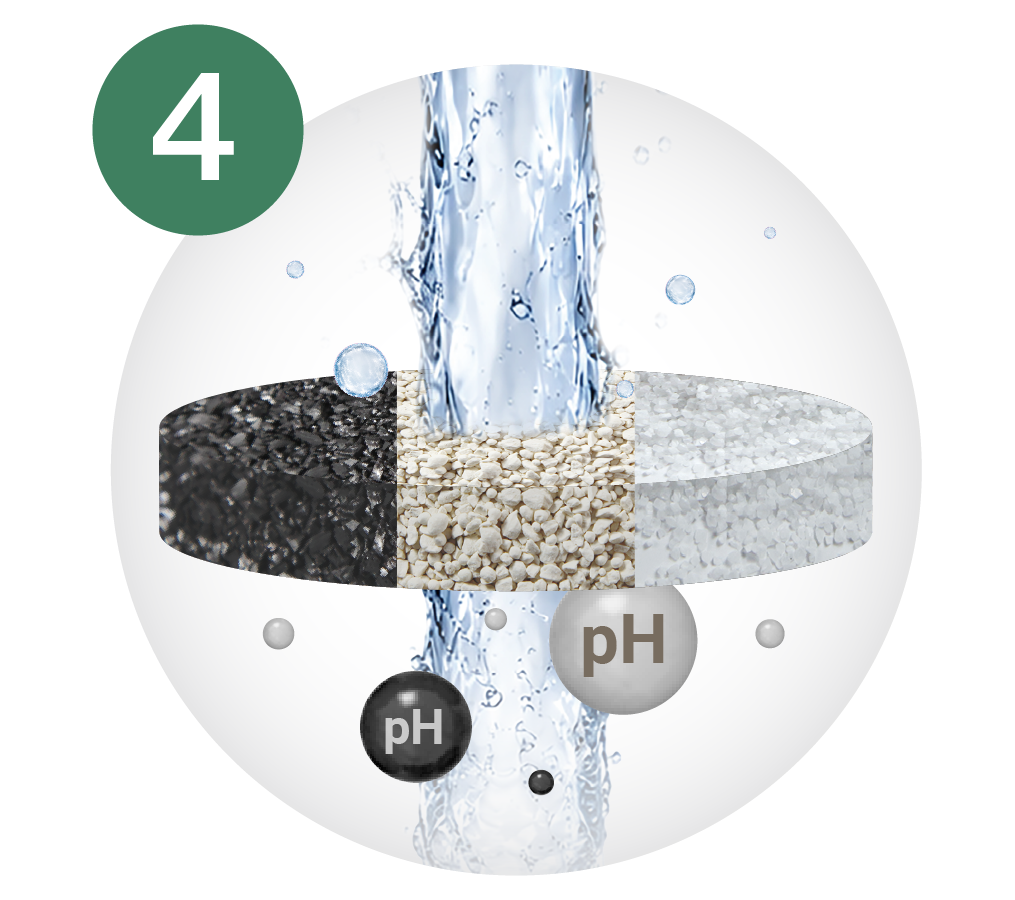

Stage 4
FU-23: Alkaline Filter
Helps improve water pH.

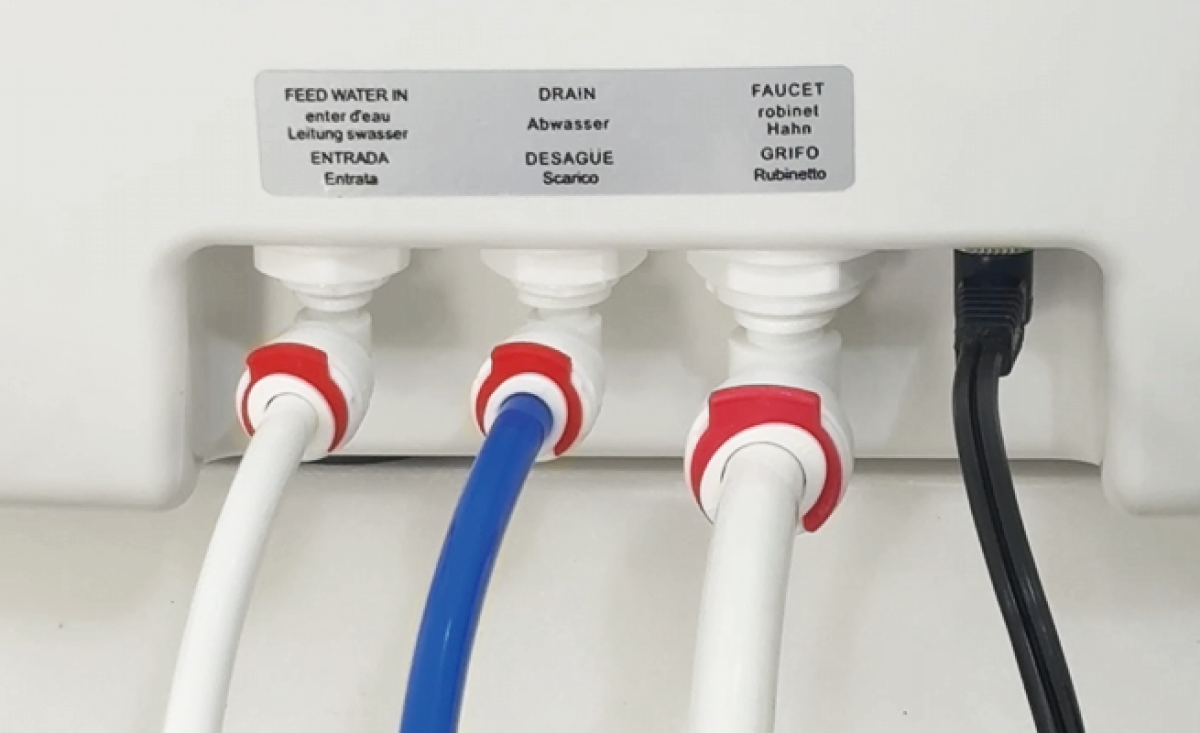

Easy Installation
Designed for easy installation, the system features unit-side quick-connect fittings for water supply, faucet, and drain line connections. The organized tubing layout simplifies installation and plumbing connections.

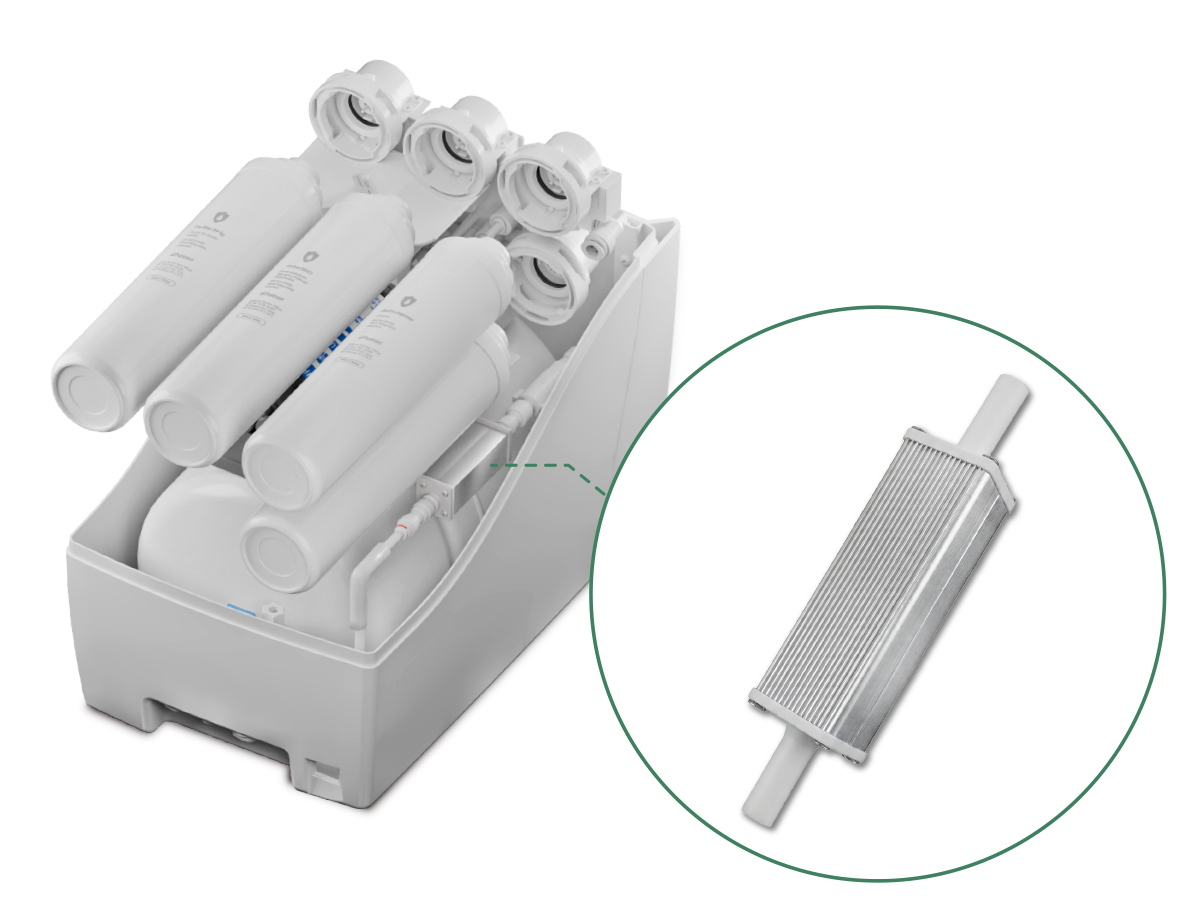

Optional 5 LPM UVC LED Module
The optional 5 LPM UVC LED sterilization module provides compact, mercury-free water disinfection for compatible RO systems. Installed directly inside the unit, it requires no additional space for a separate UVC sterilization module. It operates only when water is flowing, helping reduce unnecessary energy consumption and heat generation. UVC disinfection does not add chemical disinfectants that may affect water taste or odor.
Specification
| Model Name | CQU/CQB-R6 |
|---|---|
| Dimensions | D43×W25×H44 cm |
| Storage Tank | Built-in 10 L |
| Filters |
1st - FU-23 PP 5 Micron Filter
2nd - FU-23 GAC Filter
3rd - FU-24 RO Membrane
4th - FU-23 Alkaline Filter
|
| RO Output | 100 (GPD) |
| Voltage | DC 24 V |
| Inlet Pressure | 1.0–3.5 bar |
| Inlet Water Temperature | 5 °C–38 °C |
| Ambient Temperature | 4 °C–40 °C |
| Applicable Water Source | Municipal tap water |
| Optional | UVD-0051 (5 LPM UVC LED Module) |
Application
Clean, purified water for drinking, cooking, and everyday kitchen needs.
Compact RO purification designed for modern under-sink spaces and family living.
A practical RO solution for drinking water in offices and shared spaces.
Designed to integrate seamlessly into modern residential developments.
Components
FU23/FU24 Series
Faucet
UV Lamp
Note
- Install a pressure-reducing valve if the water pressure exceeds 3.5 bar.
- Do not use where the water is microbiologically unsafe or of unknown quality without adequate disinfection before or after the unit.
- The system and installation shall comply with applicable state and local regulations.
