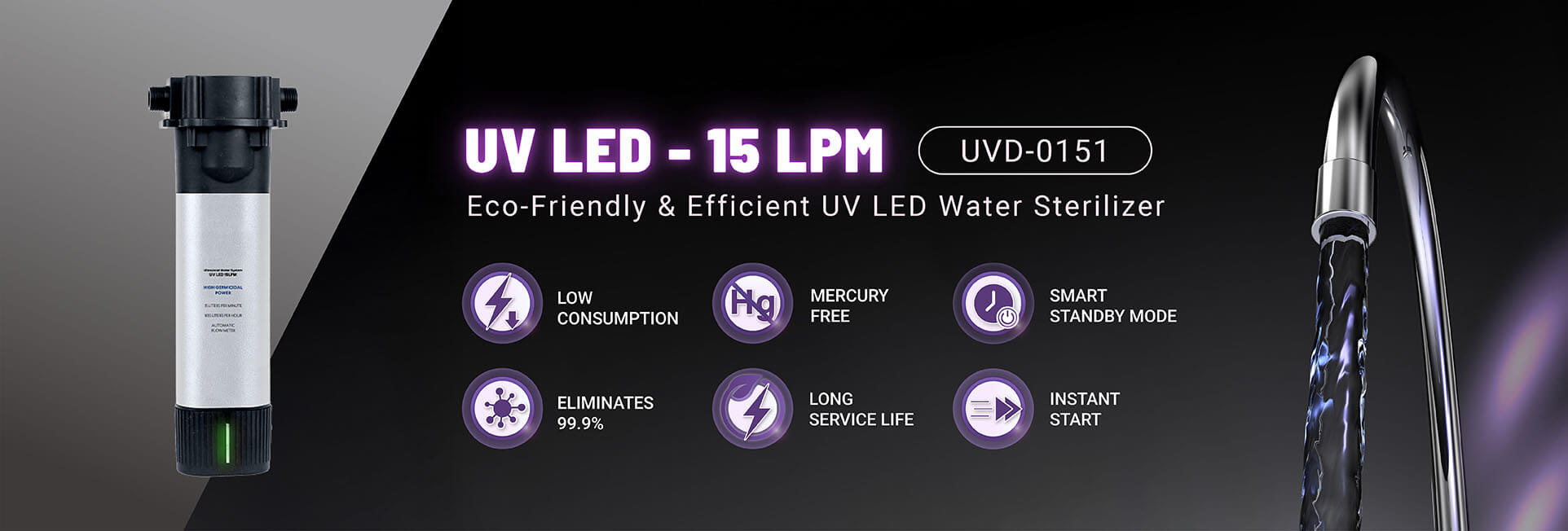

15LPM UV LED Water Disinfection System
Puricom 15LPM UV LED Water Disinfection System

Water Treatment Components

  • Mercury-Free Technology: Unlike conventional UV lamps, our UV LED is safe for the environment as it contains no mercury.
  • Energy Saving & Cost Efficient: Low energy consumption reduces carbon footprint and helps save on long-term electricity costs.
  • Instant Activation: No warm-up time needed—ensuring fast, efficient disinfection while minimizing energy waste.
  • Smart Standby Mode: Consumes only 20% of power while maintaining continuous protection.
  • Long-Lasting Performance: UV LEDs offer significantly longer lifespans than traditional UV lamps.
  • Pure & Safe Water: Disinfection leaves no taste, odor, or toxic residues.
  • Powerful Germ-Killing: Effectively eliminates over 99.9% of bacteria and viruses.


Specification

Model UVD-0151
Type UV LED, 15LPM
MAIN MATERIAL PP, Aluminium alloy
INPUT VOLTAGE AC 100V-240V 50/60Hz
OUTPUT VOLTAGE DC 24V 1.5A
WORKING TEMPERATURE 2ºC - 65ºC
WORKING PRESSURE 0.8 MPa (115 psi)
CONNECTIONS 1/2” male thread
WORKING FLOW OF OSMOSED WATER 15L/min
WORKING FLOW OF FILTERED WATER 6-10L/min
MINIMUM FLOW REQUIRED FOR ACTIVATION 2L/min
DISINFECTION RATE ≥99.9 (E. Coli) @≤15LPM
SERVICE LIFE 3,000h
POWER 17W
INGRESS PROTECTION (IP) RATING IPX7
DIMENSIONS W12×H31 (cm)
